Improved Single-stage Gas Furnace

Description: Improved single-stage gas generator has overcome the inherent defects of the original single-section gas generator. With gasification efficiency and gas calorific value increased by 10%-15%, and the ash residue carbon content reduced by 10%-20%, the improved gas producer greatly reduced the labor in...

0086-13720535010

861755503@qq.com

get in touch
Product Description:

Introduction

Improved single-stage gas generator has overcome the inherent defects of the original single-section gas generator. With gasification efficiency and gas calorific value increased by 10%-15%, and the ash residue carbon content reduced by 10%-20%, the improved gas producer greatly reduced the labor intensity of operators and the failure rate of equipment.

Advantages

Low investment, large gas production, high heat utilization, complete gasification, wide adaptability of feed coal and simple operation.

Application

The improved single-stage gas generation furnace is widely used as metal heat treatment furnaces, ceramic kilns, aluminum melting furnaces, copper refining furnaces, forging and burning furnaces, metal products heating furnaces, galvanizing furnaces, drying furnaces, and annealing furnaces in chemical, refractory, cable and boiler industry, etc.

Improved single-stage gas generator Technological process:

After entering the coal field, the raw coal is broken, screened and transported to the coal storage layer (the coal storage bunker). Then, the coal is added into the furnace by the automatic coal feeder, transferred to the gasification section and reacts with the gasification agent to generate the gas (the gasification agent is composed of air and steam). The generated gas is exported via the outlet of the gasification section and enters the quenching and cooling tower (double vertical pipe). Then, it enters the scrubbing tower for further cooling and dust removal. Finally, after entering the pressurizing machine system for dehydration and desulphurization, the purified gas is sent to the gas supply point.

Furnace body structure:
Parameter
Parameter
Φ1.5
Φ2.0
Φ2.4
Φ2.6
Φ3.0
Φ3.2
furnace inner diameter(m)
1.5 2.0 2.4 2.6 3.0 3.2
furnace sectional area(㎡)
1.77 3.14 4.52 5.3 7.07 8.04
Working pressure of water jacket(Mpa)
0.294
steam output of water jacket(Kg/h)
~200 ~340 ~420 ~470 ~550 ~650
Fuel fragmentation and coal type(mm)
6-13、13-25、25-50 non-caking coal、weakly caking coal、long flame coal 、lignite and gas coal
Fuel consumption(Kg/h)
370~530 630~950 1000~3000 1430~1630 2000~2670 2200~2750
Coal gas calorific value (low)(KJ/Nm³)
5225~5670
Coal gas production(Nm³/h)
1120~1600 1900~2850 3000~4000 4300~4900 6000~8000 7000~9000
Gas pressure at furnace outlet(℃)
400~500
Blast pressure at furnace bottom(Pa)
<2450 <3000 <4000 <4000 <6000 <6000
Note: gas production and calorific value are related to coal type and coal quality

Improved Single-stage Gas Furnace Application case

Modified single sections of producer gas generator is widely used in all kinds of metal heat treatment furnace, ceramic furnace, molten aluminum, copper refining furnace, forging furnace burning furnace, metal products, hot dip galvanizing furnace, heating furnace, drying furnace, annealing furnace industry, chemical industry, refractory material, such as cable industry and boiler industry. More case > >

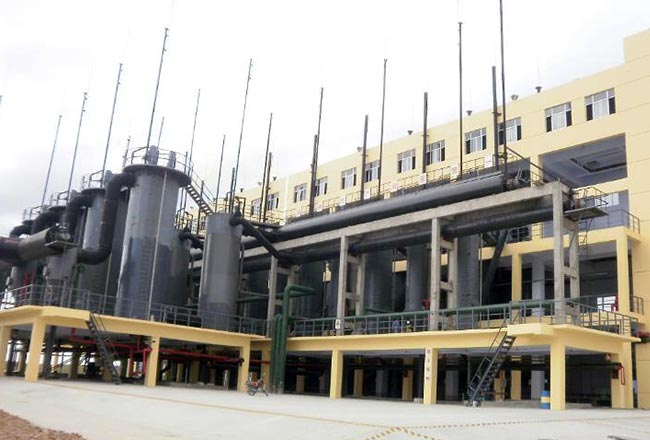

Of ping guo aluminum waste heat recovery system

Guangxi actively aluminum single sections of the gas generator

Vietnam lam dong alumina single sections of gas station
